Easy to use and effective against grease
Miele cooker hoods feature a stainless steel grease filter made up of 10 layers. The upper layers and the filter frame are made of high-quality stainless steel. When you clean the grease filters in the dishwasher, there is no discolouration, and Miele grease filters retain their appearance and efficiency for a long time.
Comfort and safety in every detail
Located behind the grease filters on the Miele CleanCover accessory: instead of sharp metal edges and electrical components, you will find only a smooth, sealed surface. The surface is particularly easy to clean and protects you from contact with cables and motor parts. Attention to detail that is typical of Miele, for your comfort and safety.
Decorative panels, not metal grease filters
On hoods with perimeter extraction, professional-looking metal grease filters are hidden behind a decorative cover. Cooking vapours are extracted both around the perimeter and from the central zone of the hood on models with multi-zone extraction.
A kitchen free of unpleasant smells
Thanks to the regenerable activated carbon filter, odours are removed effectively inside the appliance. Alternatively, these activated carbon filters can be purchased as optional accessories for many wall-mounted and island hoods.
Automatic operation, intelligent control
The Miele Con@ctivity 2.0 automatic function allows the hood to communicate with the hob: the hob settings are passed to the hood controls. Your Miele hood then uses this data to automatically select the correct fan setting to maintain an optimum room climate.
Automatic fan acceleration
After cooking, automatic fan acceleration ensures cooking vapours and odours are fully extracted from the air. The hood can be set to switch off automatically after 5 or 15 minutes.
Conveniently visible time countdown
If the grease filter or activated carbon filter on your Miele cooker hood is saturated, the red LED lights up. The filter should be cleaned or replaced as soon as possible. You can adjust the service life individually: the grease filter saturation indicator can be set to 20, 30, 40 or 50 hours, and the activated carbon filter saturation indicator to 120, 180 or 240 hours.
Miele hotels put into operation

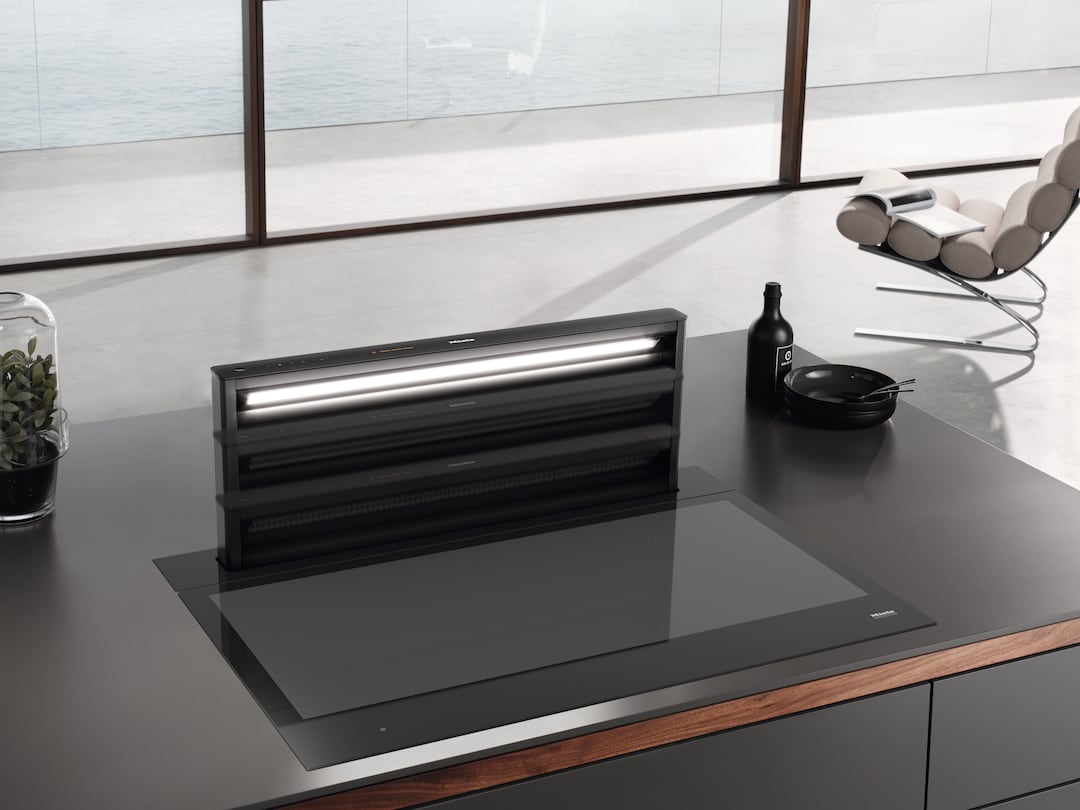

Do you have special requirements? If so, you will be impressed by our motorised hoods. The baffles on our exclusive hoods with downdraft extraction move automatically into the ideal position for use and return to the rest position when switched off. The height of the motorised island hood can be adjusted. Excellent ergonomics, highly efficient extraction and perfect integration in the kitchen.
Comenzi tactile elegante
Thanks to its colour and operating concept, the new Miele touch control matches Miele hobs perfectly. When switched off, only the On/Off icon remains visible. Only active settings are illuminated; the others stay in the background. Basic functions such as runtime can be set with a simple touch. It works perfectly with the Con@ctivity app and Miele appliances.
The heart of any hood
The heart of every cooker hood is its motor. Some Miele hoods are fitted with ECO motors that use up to 50% less energy than conventional motors. They are also very quiet, yet as powerful as the motors in other Miele hoods.
Always choose safety
The hood will stop automatically after 10 hours of operation. This means maximum safety even if a fault occurs.
| General information | |
|---|---|
| EAN | 4002516761990 |
| Manufacturer material number | 12428800 |
| Model identifier | DAD 4841 Black Levantar |
| Dimensions and weight | |
|---|---|
| Depth of hood vault in in. (mm) | 170 |
| Dimensiuni boltă în mm (L x Î x A) | 916 x 638 x 170 |
| Exhaust piping diameter in mm | 150 |
| Net weight in kg | 34 |
| Vault Height in in. (mm) | 638 |
| Vault width in in. (mm) | 916 |
| Capacity and performance | |
|---|---|
| Booster Levels | 2 |
| Color temperature in K | 3500 Kelvin |
| Debit de aer la Nivelul 1 (m³/h) conform EN 61591, Evacuare | 200 |
| Debit de aer la Nivelul 1 (m³/h) conform EN 61591, Recirculare | 160 |
| Debit de aer la nivelul 1 Booster (m³/h) conform EN 61591, Evacuare | 600 |
| Debit de aer la nivelul 1 Booster (m³/h) conform EN 61591, Recirculare | 520 |
| Debit de aer la Nivelul 2 (m³/h) conform EN 61591, Evacuare | 340 |
| Debit de aer la Nivelul 2 (m³/h) conform EN 61591, Recirculare | 320 |
| Debit de aer la nivelul 2 Booster (m³/h) conform EN 61591, Evacuare | 640 |
| Debit de aer la nivelul 2 Booster (m³/h) conform EN 61591, Recirculare | 555 |
| Debit de aer la Nivelul 3 (m³/h) conform EN 61591, Evacuare | 440 |
| Debit de aer la Nivelul 3 (m³/h) conform EN 61591, Recirculare | 415 |
| Number of dishwasher-safe (10-layer) stainless steel grease filt | 2 |
| Number x W | 1 x 11,2 W |
| Power cord length (m) | 1.5 |
| Power levels (number without Booster level) | 3 |
| Total connected load (kW) | 0.251 |
| Consumption and efficiency | |
|---|---|
| Annual energy consumption in kWh/year | 41.6 |

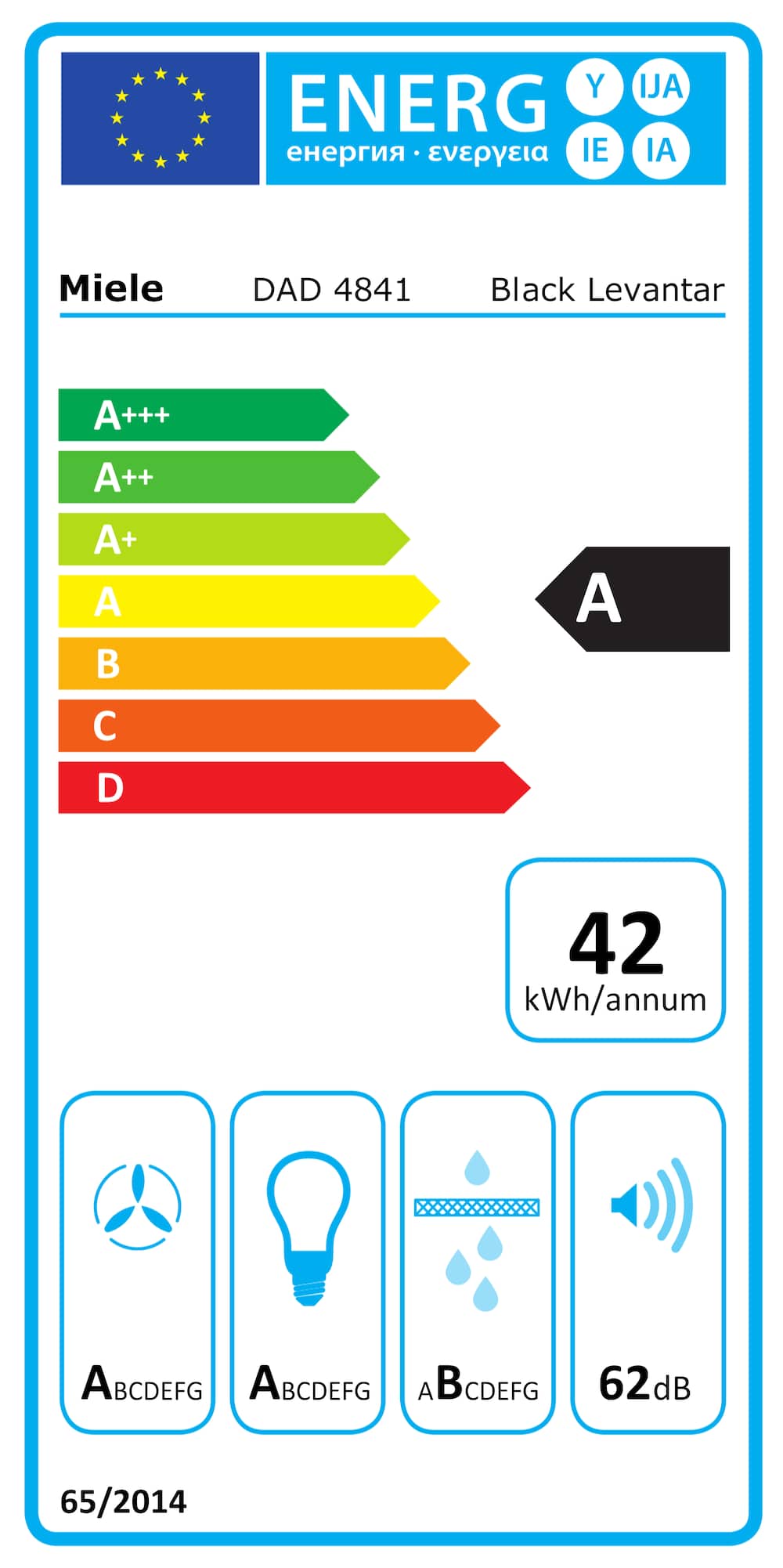

| Energy efficiency class (A+++ at D) | A |
| Fluid Dynamic Efficiency Class | A |
| Grease filtration efficiency class | B |
| Lighting efficiency class | A |
| Noise | |
|---|---|
| Putere sunet la Nivelul 1 (dB(A) re 1 pW) conform EN 60704-3, Evacuare | 44 |
| Putere sunet la Nivelul 1 (dB(A) re 1 pW) conform EN 60704-3, Recirculare | 50 |
| Putere sunet la Nivelul 1 (dB(A) re 20 µPa) conform EN 60704-2-13, Evacuare | 30 |
| Putere sunet la Nivelul 1 (dB(A) re 20 µPa) conform EN 60704-2-13, Recirculare | 37 |
| Putere sunet la nivelul 1 Booster (dB(A) la 1 pW) conf. cu EN 60704-3, Evacuare | 70 |
| Putere sunet la nivelul 1 Booster (dB(A) la 1 pW) conf. cu EN 60704-3, Recirculare | 75 |
| Putere sunet la nivelul 1 Booster (dB(A) la 20 µPa) conform EN 60704-2-13, Evacuare | 56 |
| Putere sunet la nivelul 1 Booster (dB(A) la 20 µPa) conform EN 60704-2-13, Recirculare | 61 |
| Putere sunet la Nivelul 2 (dB(A) re 1 pW) conform EN 60704-3, Evacuare | 57 |
| Putere sunet la Nivelul 2 (dB(A) re 1 pW) conform EN 60704-3, Recirculare | 64 |
| Putere sunet la Nivelul 2 (dB(A) re 20 µPa) conform EN 60704-2-13, Evacuare | 43 |
| Putere sunet la Nivelul 2 (dB(A) re 20 µPa) conform EN 60704-2-13, Recirculare | 50 |
| Putere sunet la nivelul 2 Booster (dB(A) la 1 pW) conf. cu EN 60704-3, Evacuare | 72 |
| Putere sunet la nivelul 2 Booster (dB(A) la 1 pW) conf. cu EN 60704-3, Recirculare | 76 |
| Putere sunet la nivelul 2 Booster (dB(A) la 20 µPa) conform EN 60704-2-13, Evacuare | 58 |
| Putere sunet la nivelul 2 Booster (dB(A) la 20 µPa) conform EN 60704-2-13, Recirculare | 62 |
| Putere sunet la Nivelul 3 (dB(A) la 1 pW) conform EN 60704-3, Evacuare | 62 |
| Putere sunet la Nivelul 3 (dB(A) la 1 pW) conform EN 60704-3, Recirculare | 69 |
| Putere sunet la Nivelul 3 (dB(A) la 20 µPa) conform EN 60704-2-13, Evacuare | 49 |
| Putere sunet la Nivelul 3 (dB(A) la 20 µPa) conform EN 60704-2-13, Recirculare | 56 |
| Connections and power supply | |
|---|---|
| Frequency (Hz) | 50 |
| Fuse rating (A) | 10 |
| Number of phases | 1 |
| Type of plug | Ștecher Schuko cu împământare |
| Voltage (V) | 230 |
| Equipment and accessories | |
|---|---|
| Activated carbon filter (to be ordered separately) | DKF 30-P, DKF 30-R |
| Conversion kit for recirculation (to be ordered separately) | DUP 150,DUU 600 |
| Light intensity in Lx | 400 lx |
| Număr de filtre de grăsime din oțel inoxidabil (cu 10 straturi) lavabile în mașina de spălat vase | 2 |
| Model and finish | |
|---|---|
| Color | Negru obsidian |
| Controls | SmartControl |
| Marketing class | Gold |
| Other technical data | |
|---|---|
| Optimal combination with the stove, within the limits of | KM 7689 FL; KM 7684 FL |
| Type of air guide | Can be adapted |
